Product DescriptionCompany Info.<>
- Model:
- JXG
- Principle:
- Pressure filtration
- Use:
- Solid-liquid separation
- Style:
- Vertical type
- Performance:
- High efficiency filtration
- Applicable object:
- Water
- Filter type:
- tank
- Main body material:
- Carbon steel corrosion protection
I. Overview
Mechanical filteris a kind of pressure filter, generally used as river water purification, tap water treatment, groundwater treatment and reclaimed water reuse, sewage treatment and other mechanical filtration equipment. The filter media of mechanical filter are divided into quartz sand filter, activated carbon filter, multi-media filter, manganese sand filter (iron and manganese filter), fiber ball filter, mechanical filter material is divided into stainless steel mechanical filter and carbon steel mechanical filter. Our company is a manufacturer of mechanical filters, supplying large and medium-sized cities such as Shanghai, Nanjing, Guangzhou, Shenzhen, Fuzhou, Xiamen, Nanchang, Wuhan, Changsha, Beijing, Zhengzhou, Chengdu, Chongqing and Southwest, Northeast and North China, etc., and there are freight logistics companies supporting services.
Second, mechanical filter classification
1,quartz sand filter
Quartz sand filter is generally used as a pretreatment for pure water equipment and ultrafiltration equipment,whichis mainly through the filter layer sediment, colloid, metal ions and organic matter interception, adsorption. Commonly used in general water treatment, because of its pollution-free, low price, low operating cost, so it is widely used.
2.Activated carbon filter
Activated carbon is a very fine carbon particles with large pores per unit area, usuallycalled capillarypores. This capillary has a strong adsorption capacity, due to the large surface area of carbon particles, in full contact with impurities in water. These impurities can be adsorbed in the pores, thereby removing impurities such as colloids in the water. Activated carbon can also adsorb CL ions and ozone in water, and also has a certain adsorption ability for organic matter in water. It can obviously adsorb pigments in water. In the water treatment industry, we generally require iodine values of more than 700mg.
3.Multi-media filter

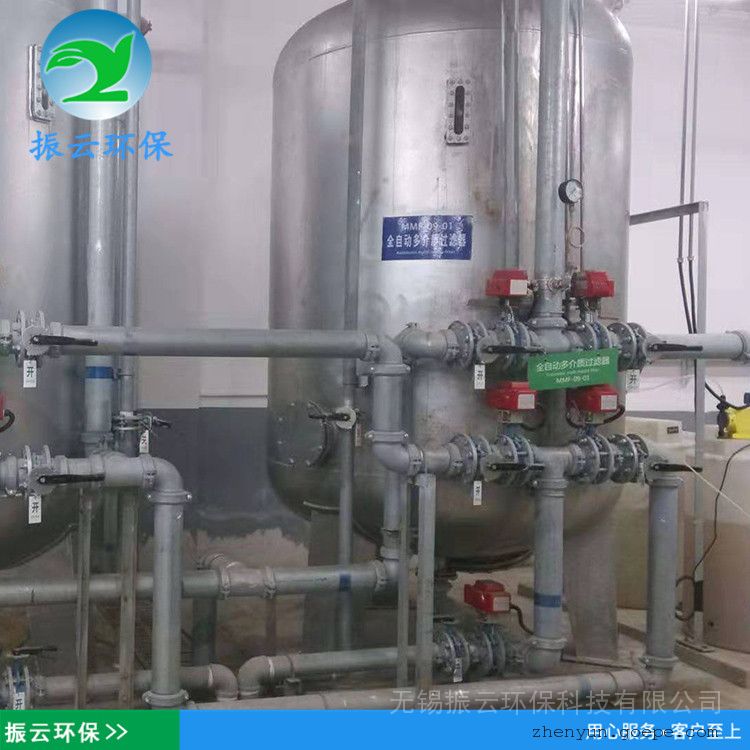

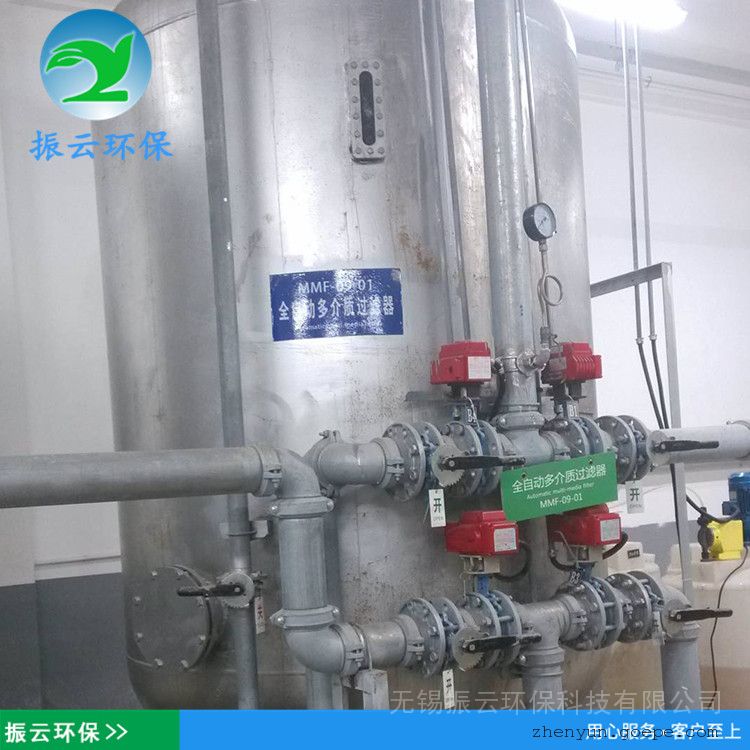

Multi-media filter, as its name implies, is filled with multiple and more than two kinds of filter media called multi-media filter, multi-media filter used in water treatment, common multi-media filter media are: anthracite, ceramsite, quartz sand, activated carbon and so on. The filter layer design of multi-media filters generally requires that the particle size of the lower filter material is smaller than that of the upper filter material to ensure the effectiveness and full utilization of the lower filter material. The density of the upper layer should be small to ensure layered recovery after backwashing. If the density of the upper layer is small, the upper filter material will sink to the lower layer after backwashing. Take the two-layer filter bed as an example, the upper filter material particles are large, the density is small, the light filter material composition, such as anthracite, activated carbon; the lower filter material particle size is small, the density is large, generally composed of quartz sand; the upper filter material plays a coarse filtration role, under the resistance, under the head loss, the lower filter material plays a fine filtration role, and the sewage interception capacity is strong, so that the role of the multi-medium filter bed is fully exerted, that is, under the head loss, the filtration effect is good, and the advantages of each layer are fully delivered.
4, iron and manganese filter
Iron and manganese filter is also known asmanganese sand filter, mainly relying on its own manganese sand catalytic role, there is a layer of iron filter gradually formed on the surface of manganese sand filter as an active filter during filtration, which can play a catalytic role. The newly formed iron oxide, as active filter material, participates in the new catalytic iron removal process, so the iron removal process of active filter membrane is an automatic catalytic process. Mainly used for groundwater treatment, circulating water treatment grade sewage treatment, etc.
5. Fiber ball filter
Fiber ballfilter, as its name implies, is the filter with fiber balls inside, it is also a kind of pressure mechanical filter, fiber ball filter fiber ball porosity accounts for about 93% of the filter layer. Fiber ball filter operation when the water goes down, due to the resistance of the water flow through the filter layer, the filter material formed an ideal gap structure, not only flux, but also increased the interception capacity,iteffectively removes suspended matter in the water, sediment, and organic matter in the water, colloid, iron, manganese, etc. have obvious removal effect, the product is used in oilfield oily sewage and other aspects of fine filtration, filtration flux and fiber ball is not easy to stick oil, so widely used in petrochemical industry.
Three,mechanical filterselection parameters
model specification
（mm）flows
（m3/h）operating temperature
（℃）filter area
（m2）filtering velocity
（m/h）Working pressurekgf/cm2 Outline size
(mm)(diameter height)JXG-800 Φ800 6-8 4~50 0.5 8~10 ≤6 Φ800×1600 JXG-1000 Φ1000 8-11 4~50 0.75 8~10 ≤6 Φ10002500 JXG-1200 Φ1200 10-14 4~50 1.13 8~10 ≤6 Φ12002700 JXG-1400 Φ1400 12-18 4~50 1.76 8~10 ≤6 Φ14002800 JXG-1600 Φ1600 18-25 4~50 2.00 8~10 ≤6 Φ16002900 JXG-1800 Φ1800 24-32 4~50 2.54 8~10 ≤6 Φ18003200 JXG-2000 Φ2000 28-40 4~50 3.14 8~10 ≤6 Φ2000 3300 JXG-2200 Φ2200 35-45 4~50 3.80 8~10 ≤6 Φ22003500 JXG-2400 Φ2400 40-55 4~50 4. 52 8~10 ≤6 Φ24003500 JXG-2600 Φ2600 55-65 4~50 5.30 8~10 ≤6 Φ26003700 JXG-2800 Φ2800 65-85 4~50 6.15 8~10 ≤6 Φ28003800 JXG-3000 Φ3000 75-95 4~50 7.10 8~10 ≤6 Φ30003850 - Name（chinese）
