- Model:
- GL
- Processing customization:
- Yes
- Structural form:
- Rotary type
- Treated sewage volume:
- 1400-10000 m3/h
- Power:
- 0.75-5.5 kw
- Tooth rake linear speed:
- ≤3.0 m/min
I. Overview

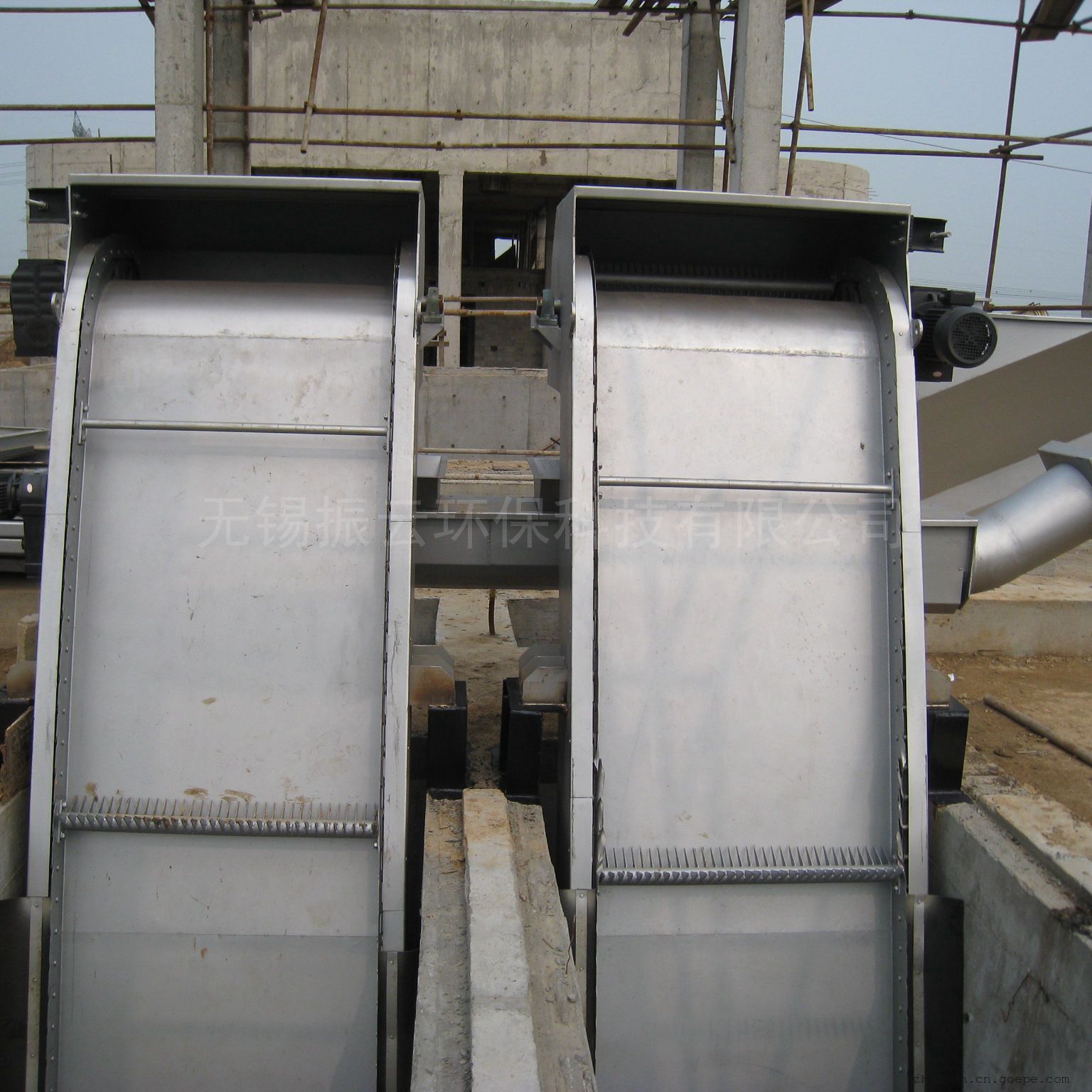

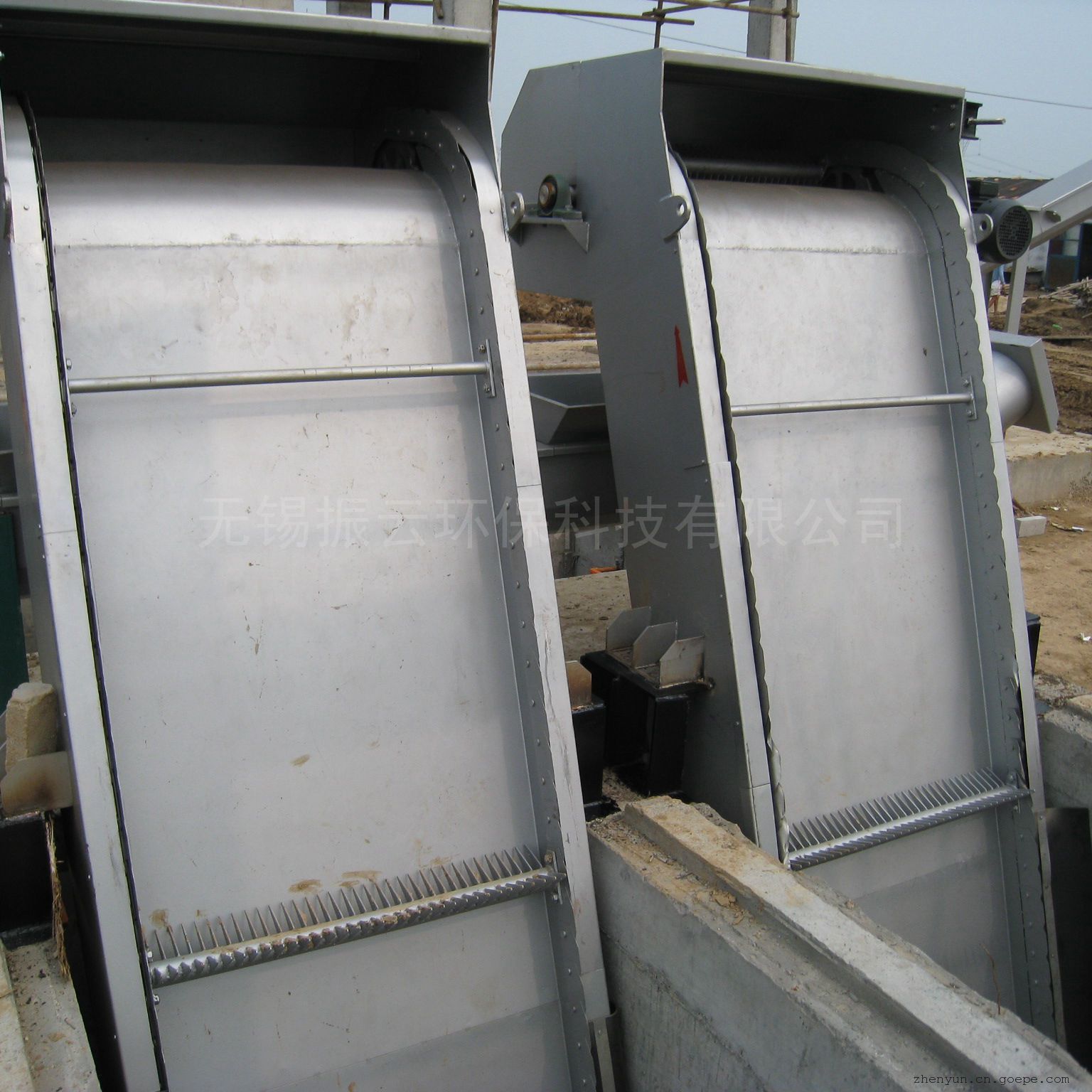

GL type chain plate rotary grid decontamination machine (referred to as rotary grid decontamination machine), it is suitable for urban sewage treatment rainwater, sewage pumping stations, water supply lift pumping stations and sewage treatment plant intake, used to intercept, remove floating debris, is a wide range of decontamination equipment. nbsp;
II. Structure and working principle
When sewage flows through, impurities larger than the grid gap are intercepted, and the rake teeth of the rake plate penetrate into the gaps of the grid bars. When the driving device drives the traction chain to rotate, the rake teeth bring the impurities trapped on the grid surface from bottom to top to the slag outlet. When the rake teeth rotate from top to bottom, the impurities fall off by gravity and fall into the conveyor or garbage trolley from the discharge outlet. and then shipped out or processed further.& nbsp;
III. Main features
1. The driving device adopts cycloid pin wheel or helical gear reduction motor to drive directly, with low noise, compact structure and stable operation.
2, rake tooth plate by gold processing, high precision, beautiful appearance, two rake tooth plate spacing of 2.0-2.5m, the middle of the addition of a support block, can effectively remove large debris;
3. The frame is an integral frame structure with strong rigidity, simple installation and less daily maintenance workload;
4, the equipment is easy to operate, can be directly local/remote control equipment operation;
5, in order to prevent accidental overload, with mechanical shear pin and overcurrent double protection, so that the equipment runs safely and reliably.
IV. Main technical parameters and installation size tablemodel parameters GL800 GL1000 GL1200 GL1400 GL1600 GL1800 GL2000 GL2200 GL2400 GL2600 GL2800 GL3000 Equipment width b(mm) 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 Channel width b1(mm) b1=b+100 Effective grid width b2(mm) b2=b-150 Foundation bolt spacing b3(mm) b3=b+200 Total width b4(mm) b4=b+350 Bar gap b(mm) 20~100 Installation angle () 60~80 Canal depth h(mm) 2000~12000 (depending on user requirements) Height from discharge port to platform h1(mm) 600~1200 (depending on user requirements) Total height of equipment h2(mm h+h1+1500 h+h1+1600 Bar length l (mm) (* Large water depth +600)/sin (depending on user requirements) Traction chain slewing speed v(m/min) ≤3.0 Motor power n (kw) 0.75~1.5 1.1~2.2 1.5~3.0
V. Overflow metermodel parameters GL800 GL1000 GL1200 GL1400 GL1600 GL1800 GL2000 GL2200 GL2400 GL2600 GL2800 GL3000 Water depth in front of grid h3(m) 1.0 Flow velocity v (m/s) 1.0 gap B
(mm)20 Overflow q
10 4 t/d
3.34 4.51 5.67 6.85 8.03 9.19 10.37 11.55 12.71 13.88 15.06 16.22 30 3.75 5.07 6.39 7.71 9.03 10.36 11.67 13.00 14.32 15.63 16.95 18.27 40 4.00 5.41 6.82 8.22 9.63 11.04 12.44 13.85 15.26 16.66 18.07 19.48 50 4.17 5.63 7.12 8.57 10.02 11.47 12.96 14.50 15.86 17.40 18.81 20.26 60 4.27 5.80 7.30 8.80 10.32 11.81 13.34 14.82 16.40 17.82 19.41 20.88 70 4.36 5.90 7.46 9.00 10.52 12.06 13.59 15.13 16.67 18.21 19.75 21.31 80 4.43 6.02 7.59 9.14 10.68 12.23 13.85 15.40 16.94 18.49 20.11 21.66 90 4.50 6.09 7.67 9.25 10.83 12.42 14.00 15.58 17.16 18.75 20.33 21.91 100 4.57 6.15 7.75 9.35 10.94 12.57 14.15 15.73 17.73 18.90 20.57 22.15
VI. Notice for ordering
1. When ordering, please provide the main parameters such as channel width, channel depth, installation angle, grid spacing and discharge height.
2, please indicate the equipment material;
3. If supporting control box, please indicate the control mode;
4. If the user has special requirements, it can be indicated in advance in the order contract.- Name（chinese）
